Ac circuit phasor analysis, HR Management

Assignment Help:

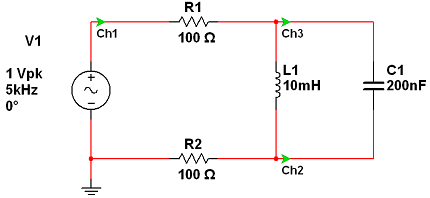

• Wire the circuit shown in Figure 1. Connect the three oscilloscope channels (Ch1, Ch2 and Ch3) as shown in Figure 1.

• Select the sinusoidal waveform. Adjust the frequency of the input voltage to 5kHz. Adjust the magnitude of the input voltage to 2Vpp (2V peak to peak with 0V DC offset).

• Use the oscilloscope to measure magnitudes and phase angles of all voltages in the circuit (take the source voltage as the reference with 0o
phase angle).

• Save data for all oscilloscope channels for processing in MATLAB.

• Delete your circuit from the Circuit Builder and press configure button to disconnect the circuit and reduce the electricity consumption.
