Determine the transformation matrix for the reflection, Computer Graphics

Assignment Help:

Determine the transformation matrix for the reflection about the line y = x.

Solution: The transformation for mirror reflection regarding to the line y = x, comprises the subsequent three basic transformations.

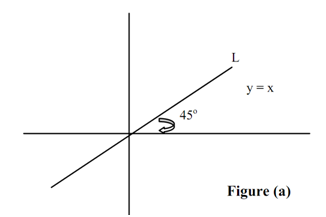

2217_Determine the Transformation Matrix for the Reflection 1.png

1)   Rotate the line L via 45o in clockwise rotation,

2)   Perform the needed Reflection about the x-axis.

3)   Rotate back the line L via -45o that is,

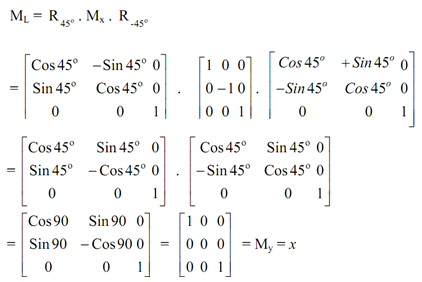

2196_Determine the Transformation Matrix for the Reflection 2.png
