Compare a decoder and a demultiplexer with block diagram, Computer Engineering

Assignment Help:

Compare a decoder and a demultiplexer with suitable block diagrams.

Ans. Demultiplexer has similar circuit as decoder but here e is obtained as the particular input line, the output lines are similar as decoder (that is max 2n). The information at E will be converted to one of the output line and the output line will be selected through bit combination of n select lines.

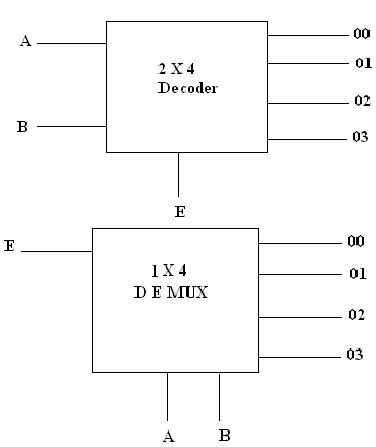

Block diagrams of a decoder and a demultiplexer

1817_Block diagrams of a decoder and a demultiplexer.png
