Q. What do you mean by Frequency Response?
As with all electronic circuits, op amps have limited frequency response. Because of the negative feedback of the circuit, the passband of an op-amp circuit is usually much larger than that of the op amp by itself. Typically with a given op amp, increasing the bandwidth of an op-amp circuit will decrease the voltage gain in the same proportion. Thus for a given op amp, the product of gain and bandwidth (i.e., the gain-bandwidth product) is a constant, as discussed earlier and shown in Figure.

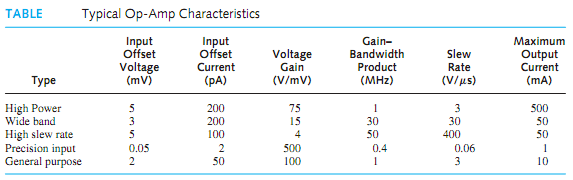

Table lists some representative op-amp parameters for different amplifier types, only to illustrate their characteristics. One can see from the table that a high-power op amp can deliver a large output current, but has relatively large offset parameters. On the other hand, a precision input amplifier has low offset and high gain, but at the price of bandwidth, slew rate, and output current. The general-purpose amplifier, as the name suggests, strikes a balance between these extremes.
Q. An antenna has an aperture area of 10 m 2 ,an aperture ef?ciency of 0.6, and negligible losses. If it is used at 5 GHz, determine: (a) Its power gain. (b) The maximum pow
Turn off Time This is also known as gate controlled turn on time. The time interval between a specified point at the beginning of the gate pulse and the instant wh
Q. Use (a) mesh analysis and (b) nodal analysis to determine the current through the 4-resistor of the circuit of Figure.
LIFO (Last In First Out) stack is used in 8085.In this type of Stack the last kept information can be retrieved first.
We can illustrate the direction and strength of a magnetic field by means of drawing 'flux lines'. These have arrows to show the direction of the magnetic field at any point and th
What is memory mapping? The assignment of memory addresses to several registers in a memory chip is known as memory mapping.
#I need some guides in order to build a circuit that will be beneath a machine and turn that machine left/right/up/down
Simulation of a pn Junction An n + p junction is fabricated on a p-type silicon substrate with N A = 8×10 15 cm -3 . The n+ region has a concentration of N D = 1.5×10 18
Evaluate Phase difference between voltage and current: An inductive coil of reactance 15.7 Ω and resistance 32 Ω is connected in series with a capacitor of reactance 79.5 Ω. T
Question : a) State six desirable requirements of a generic photo-detector. b) A gallium arsenide pin photo-diode has an intrinsic layer of width 1 μm. The diode is revers
