Q. What is DTMF dialling?

DTMF dialling

1.  Uses push buttons

2.  Uses 8 different frequencies in pairs.

3.  16 different characters can be represented.

4.  The frequencies used prevent generating of harmonics.

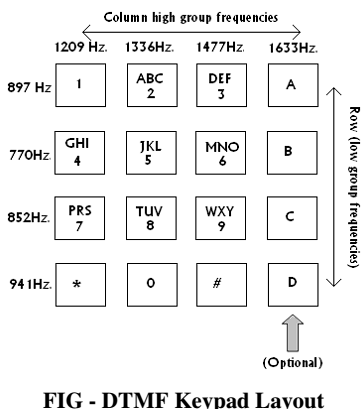

5.  Each number is represented by a high signal & low signal=

636_What is DTMF dialling.png
