Simple zener voltage regulator, Electrical Engineering

Assignment Help:

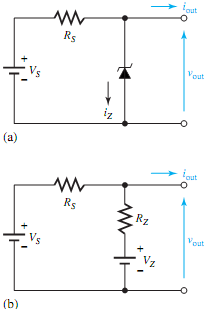

Consider a simple zener voltage regulator with the circuit diagram shown in Figure (a).

(a) For a small reverse resistance RZ << RS and VS - RS iout > VZ, show that vout = VZ.

(b) For values of VS = 25 V, RS = 100 , VZ = 20 V, and RZ = 4 , find:

(i) vout for iout = 0 and iout = 50 mA.

(ii) The corresponding values of the reverse current iZ through the zener diode.

981_simple zener voltage regulator.png
