Put the system of a geometric data table for a 3d rectangle, Computer Graphics

Assignment Help:

Put the system of a geometric data table for a 3d rectangle.

Solution:

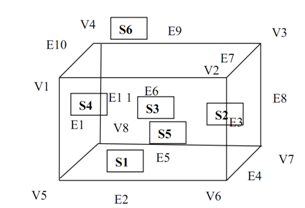

83_Put the system of a geometric data table for a 3d rectangle.png

Vertex Table

Edge Table

Polygon Surface Table

V1

X1,y1,z1

E1

V1,v5

S1

V1,v2,v6,v5

V2

X2, y2, z2

E2

V5,v6

S2

V2,v6,v7,v3

V3

X3, y3, z3

E3

V6,v2

S3

V8,v7,v3,v4

V4

X4, y4, z4

E4

V6,v7

S4

V1,v4,v5,v8

V5

X5, y5, z5

E5

V7,v8

S5

V8,v5,v6,v7

V6

X6, y6, z6

E6

V1,v2

S6

V4,v1,v2,v3

V7

X7,y7,z7

E7

V2,v3





V8

X8,y8,z8

E8

V7,v3









E9

V3,v4









E10

V4,v1









E11

V1,v2
