Obtain a bode magnitude plot for the transfer function, Electrical Engineering

Assignment Help:

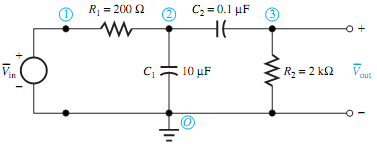

Q. A bandpass filter circuit is shown in Figure. Develop a PSpice program and use PROBE to obtain a Bode magnitude plot for the transfer function ¯H(f) = ¯Vout/ ¯Vin for frequency ranging from 1 Hz to 1 MHz. At what rate (in dB/decade) does the magnitude fall off at low and high frequencies? Also determine the half-power frequencies.

760_Obtain a Bode magnitude plot for the transfer function.png
