Illustrate the design discharge for foundation, Civil Engineering

Assignment Help:

Q. Illustrate the Design discharge for foundation?

To provide for an adequate margin of safety, the foundation and protective works of a bridge should be designed for a flood discharge of higher magnitude than the waterway design discharge. For this purpose, the waterway design discharge may be increased by the percentages given in Table.

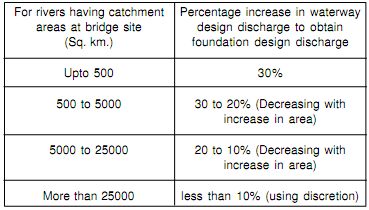

Table:  Foundation Design Discharge with Percentage Addition to Waterway Design Discharge

1244_Design discharge for foundation.png
