Get bode plots of magnitude and phase of transfer function, Electrical Engineering

Assignment Help:

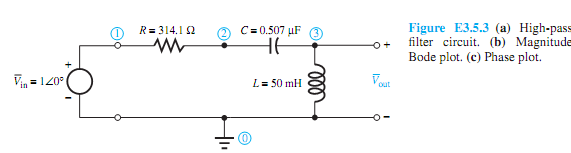

Develop a PSpice program and use PROBE to obtain Bode plots of the magnitude and phase of the transfer function ¯Vout / ¯Vin for the high-pass ?lter circuit shown in Figure (a) along with node numbers. This ?lter is to pass components above 1 kHz and reject components below 1 kHz.
