Find the output voltage in full-wave rectified waveform, Electrical Engineering

Assignment Help:

Q. The full-wave rectified waveform, approximated by the first three terms of its Fourier series, is given by v (ωt) = Vmsin (ωt/2), for 0 ≤ ωt ≤ 2π, and

1163_Full-wave rectified waveform.png

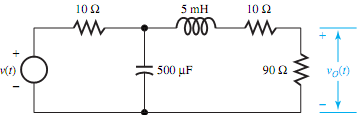

where Vm = 100V and ω = 2π×120 rad/s. If v(t) is applied to the circuit shown in Figure, find the output voltage v (t).

508_Find the output voltage in Full-wave rectified waveform.png
