Q. Explain working of Inverting Amplifier?

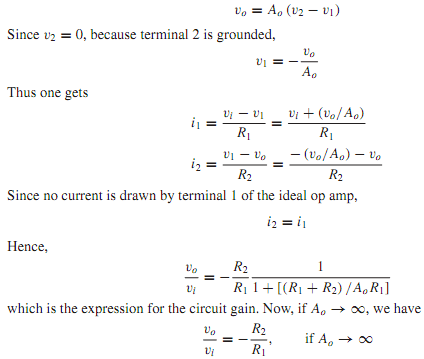

One common op-amp circuit is shown in Figure. For the case of finite voltage gain Ao of an op amp that is otherwise ideal, the output voltage becomes

527_Explain working of Inverting Amplifier1.png

150_Explain working of Inverting Amplifier.png


which is independent of the op amp's gain Ao. The sign inversion associated with Equation makes the amplifier "inverting." Generally if Ao is at least 200 times the magnitude of R2/R1, then the actual gain given by Equation will be within 1% of the ideal gain given by Equation. Assuming infinite gain of the op amp, it follows that

vd = v2 - v1 = 0 or v1 = v2

Since terminal 2 is at ground potential (zero) in Figure, terminal 1 is said to be a virtual ground.Notice that when R2 =R1, the inverting amplifier becomes a voltage follower with inverted sign and a gain magnitude of unity.
