Explain the logic symbols - flip flops, Computer Engineering

Assignment Help:

Explain the Logic symbols - Flip Flops?

These flip-flops are as well called Master-Slave flip-flops simply because their internal construction is divided into two sections. The slave section is essentially the same as the master section except that it is clocked on the inverted clock pulse and is controlled by the outputs of the master section rather than by the external inputs.

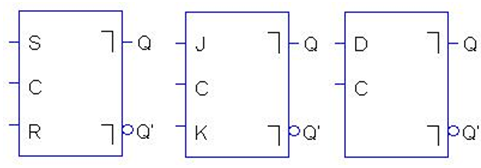

795_Logic symbols.png
