Explain Plate jig

1) The major parts of this jig is plate from which it takes its name other necessary parts and drill bush and locating pins.

2) Plate jigs are general for drilling holes in long strips or at angles.

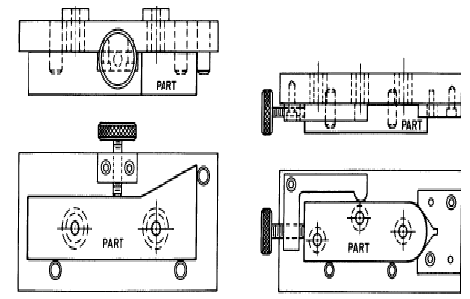

1053_Explain Plate jig.png

3) Various strips are stacked and plate jig is possible above them locating it by pins on mutually perpendicular sides.
