Example of file ploting data:

As the other example, a data file called 'compsales.dat' stores the sales figures (in millions) for divisions in a company.

Each line in the file stores the sales number, followed by an short form of the division name, in the following format which is as shown below:

5.2 X

3.3 A

5.8 P

2.9 Q

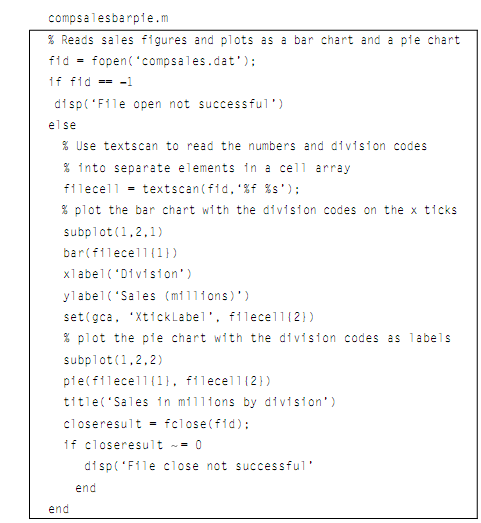

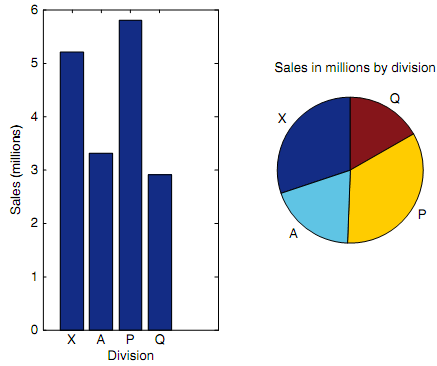

The script below uses the textscan function to read this information into a cell array, and then uses the subplot to produce a Figure Window which displays the information in a bar chart and in a pie chart as shown in figure.

812_example of plting file data.png

1512_example of plting file data1.png
