Determine the reliable moment capacity, Civil Engineering

Assignment Help:

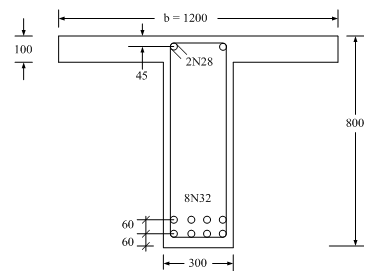

Figure 2 details a typical T-beam unit in a beam and slab floor with a span of L = 10 m. Determine the reliable moment capacity Mfor the T-section shown. Take fc = 32 MPa.

1212_Determine the reliable moment capacity.png
