Determine the electromagnetic force on the plunger, Electrical Engineering

Assignment Help:

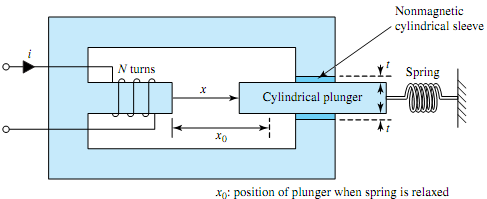

Q. Consider the electromagnetic plunger shown in Figure. The λ-i relationship for the normal working range is experimentally found to be λ = Ki 2/3 /(x+t), where K is a constant. Determine the electromagnetic force on the plunger by the application of Equations. Interpret the significance of the sign that you obtain in the force expression.

1433_Determine the electromagnetic force on the plunger.png
