Find the input resistance and output resistance, Electrical Engineering

Assignment Help:

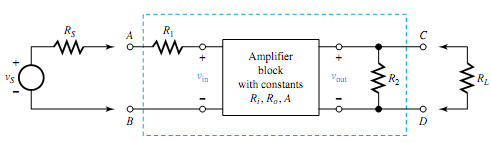

Quite often an amplifier is used as a component of an amplifier circuit. Consider the amplifier circuit shown in Figure, which contains an amplifier block as an internal component. Find the input resistance Ri, the output resistance Ro, and the open-circuit voltage amplification A of
the larger circuit.
