Conversion of fractional number into its binary number, Computer Engineering

Assignment Help:

Conversion of fractional number 0.6875 into its equivalent binary number ?

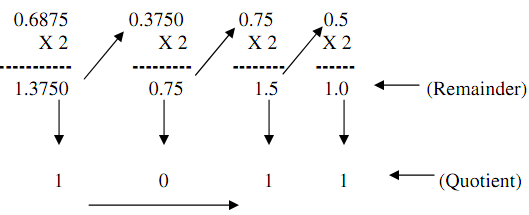

Ans. Multiply the fractional number 0.6875 with 2 until the remainder becomes 0 that is,

1803_Conversion of fractional number 0.6875 into its equivalent binary number.png

Therefore, the decimal fractional number 0.6875 is equivalent to binary number 0.1011.
