Choose compensating components for the circuit, Electrical Engineering

Assignment Help:

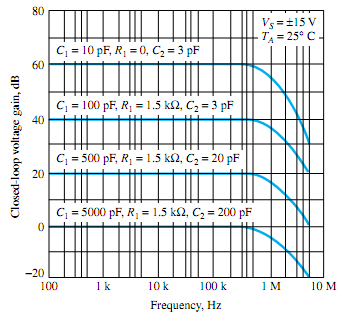

Q. Figure gives the frequency-response graphs for a 709 op amp. Choose compensating components for the circuit to have a gain of 100 and a frequency response of up to 100 kHz.

2325_Choose compensating components for the circuit.png
