Calculate the total charge on the integrator, Electrical Engineering

Assignment Help:

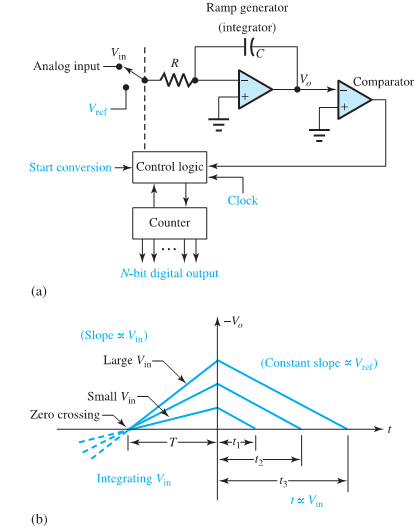

Q. Consider the dual-slope A/D converter of Figure.

(a) Calculate the total charge on the integrator due to the input voltage Vin during the signal integration time T.

(b) Obtain an expression for the discharge time td in terms of Vin, Vref, and T.
