Determine the remaining voltages and currents, Electrical Engineering

Assignment Help:

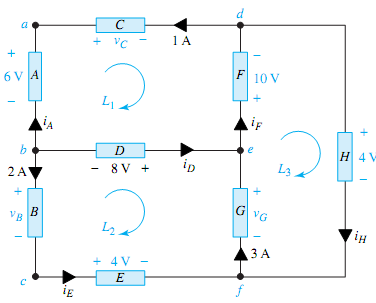

Q. Some element voltages and currents are given in the network con?guration of Figure. Determine the remaining voltages and currents. Also calculate the power delivered to each element as well as the algebraic sum of powers of all elements, and comment on your result while identifying sources and sinks.
