Develop logic expression and find one possible logic circuit, Electrical Engineering

Assignment Help:

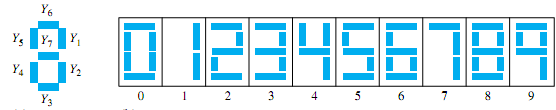

Q. Figure (a) shows the seven-segment array that iswidely used to formthe decimal digits 0 to 9 in LEDdisplays, as indicated in Figure(b). Let the inputs be the four binary digits used to represent the decimal digits 0 to 9. (a) For the segment Y1, (b) For the segment Y2, and (c) For the segment Y3 to be turned on, develop the logic expression and find one possible logic circuit to realize the output in each case.

1205_Develop logic expression and find one possible logic circuit.png
