Write the truth table to realize the function nand gate, Computer Engineering

Assignment Help:

For F = A.B.C + B.C.D‾ + A‾.B.C, write  the  truth  table to realize the function using NAND gates only ?

Ans. Logic Function given as F = ABC + BC‾D + A‾BC, simplification of this expession isgiven below:

(i)The Truth Table is specified in Table

Inputs



A                B                  C                   D

Output

(F)

0                 0                  0                  0

0

0                 0                  0                  1

0

0                 0                  1                  0

0

0                 0                  1                  1

0

0                 1                  0                  0

0

0                 1                  0                  1

1

0                 1                  1                  0

1

0                 1                  1                  1

1

1                 0                  0                  0

0

1                 0                  0                  1

0

1                 0                  1                  0

0

1                 0                  1                  1

0

1                 1                  0                  0

0

1                 1                  0                  1

1

1                 1                  1                  0

1

1                 1                  1                  1

1

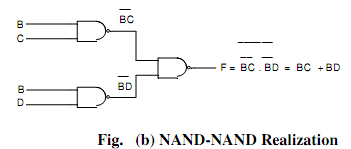

(iii) The NAND-NAND Realization is represented in fig.(b)

                                      187_Write  the  truth  table to realize the function NAND gate.png
