Write short note on Associated vs. Common channel signaling.

Associated vs Common channel signalling:

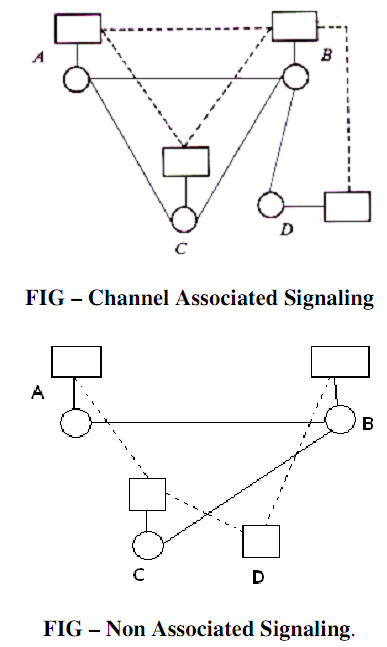

The out band signalling suffers from the very restricted bandwidth. Both are able of having only a small signal repertoire. The trend into modern networking is to give improving signalling facilities for subscriber, the telephone administration and the switching system. This need is met through common channel signalling that may be common channel signalling that may be implemented in two ways: channel connected mode4 and channel non connected mode. In the former, common signalling channel closely tracks the trunk groups beside the whole length of a connection. In the letter, here is no close or easy assignment of control channels to trunk groups. Such modes are demonstrated in figure. The associated mode of operation shown in figure. Signalling paths for speech paths as A-B, A-C-B and B-D are as A-B, A-C-B and B-D correspondingly. The expression 'associated signalling' in the CCS should not be confused along with in channel signalling. The signalling in CCS connected mode is even done on a separate signalling channel; simply that the signalling path passes by the similar set of switches as does the speech path. The signalling network has network topologies and the speech network is similar. The advantages of the scheme are the economic implementation and easy assignment of trunk groups to signalling channels.

149_Associated Common channel signalling.png
