Q. What is structural formula and how to write it?

Ans.

To represent an organic molecule, a structural formula is often used. As a structural formula shows how the atoms in a molecule are bonded to each other, it gives more information than does a molecular formula. Therefore, to represent compounds clearly, structural formulas should be used.

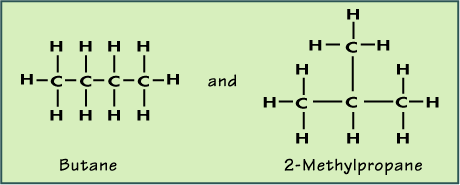

For example, it is ambiguous to represent butane by its molecular formula C4H10 because another compound, 2-methylpropane, has the same molecular formula. Here are two different structural formulas for these two compounds that both have the molecular formula C4H10:

443_What is structural formula.gif

Note: The 2 in 2-methylpropane designates that the carbon in the methyl group branch is attached to the second carbon in the propane chain.

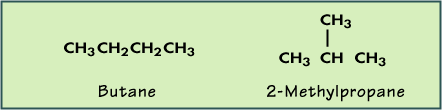

2108_What is structural formula1.gif

For convenience, the structural formulae of butane and 2-methylpropane are often written in shortened form as:

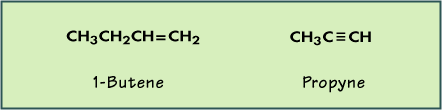

2331_What is structural formula2.gif



These are condensed structural formulas. In a condensed structural formula single bonds are usually omitted (except those joining additional branches to the main carbon skeleton). Double and triple bonds, however, are diagrammed.
