Q. What is Segment displays?

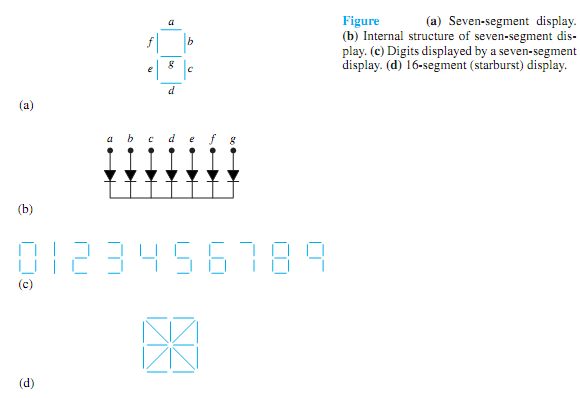

Seven-segment displays are the most commonly used numeric display devices, while 10- and 16-segment (starburst) display devices are also available. Figure (a) depicts a common- cathode seven-segment LED display; Figure (b) shows its internal structure, consisting of a single LED for each of the segments; and Figure (c) displays the digits by an appropriate combination of lighted segments. The 16-segment display shown in Figure (d) is commonly used for alphanumeric data.
