Q. What do you mean by Negative Impedance Converter?

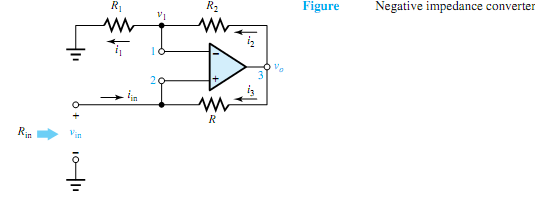

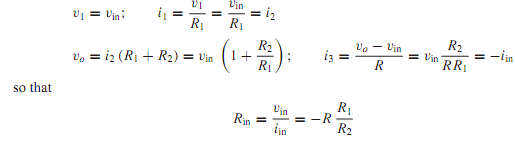

The op-amp circuit of Figure causes a negative resistance Rin between the input terminal and ground. In the more general case, when R is replaced by an impedance Z, the circuit gives a negative impedance. Using ideal op-amp techniques, one has

1280_Negative Impedance Converter.png

744_Negative Impedance Converter1.png
