Vernier caliper--measuring tools , Mechanical Engineering

Assignment Help:

Vernier Calipers: It is used to measure internal as well as outer diameters of an object. There are separate jaws available for inside and outside diameter measurements. It can also measure the depth of a hole. Vernier caliper has two scales - Main scale and Vernier scale (Figure).

1572_Vernier Caliper.png

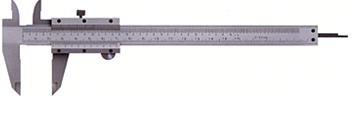

Figure : Vernier Caliper
