Use of function polyval:

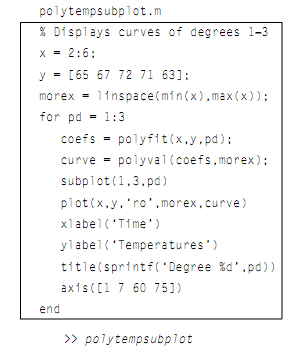

The better the curve fit, the more exact these interpolated and extrapolated values will be. By using the subplot function, we can loop to display the difference between fitting curves of degrees 1, 2, and 3 to some data. For illustration the script below will accomplish this for the temperature data:

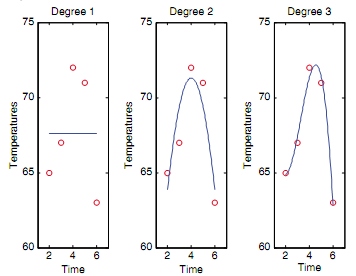

generates the Figure Window as shown in figure:
Illustration of tracing a error: The one way of following the flow of function, or tracing it, is to use the echo function. The echo function, that is a toggle, will show each
Areacirc function: The areacirc function can be called from the Command Window as shown here, or from a script. Here is a script which will prompt the user for the radius of o
Illustration of Customizing plots: Illustration, the bar and barh functions by the default place a width of 0.8 between bars. Whenever called as bar(x,y), the width of 0.8 is
Rectangle - graphics objects: The other core graphics object is the rectangle that can have curvature added to it (!!). Merely calling the function rectangle without any argum
Nested Structures: The nested structure is a structure in which at least one of the members is itself a structure. For illustration, a structure for the line segment may co
Illustration of Nested loops: Running the script shows the output: >> printstars ***** ***** ***** The variable rows identifies the number of rows to print, and
Input in a While Loop: The script below repeats the procedure of prompting a user, the reading in a positive number, and echo-printing it, as long as the user properly enters
Core Objects: The Core Objects in MATLAB are the very fundamental graphics primitives. The description can be found under the MATLAB Help: Under the Contents tab, click the Ha
Illustration of reading from files: For illustration, suppose that there is a data file 'subjexp.dat' that has on each line a number followed by thecharacter code. The type fu
Example of Vectorizing: Likewise, for an operation on a matrix, a nested loop would be needed; for illustration, supposing a matrix variable mat: [r c] = size(mat); for
