Use mesh analysis and nodal analysis to determine current, Electrical Engineering

Assignment Help:

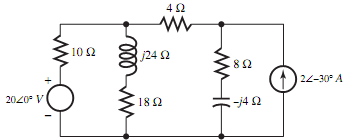

Q. Use (a) mesh analysis and (b) nodal analysis to determine the current through the 4-resistor of the circuit of Figure.
