Security alarm system, Electrical Engineering

Assignment Help:

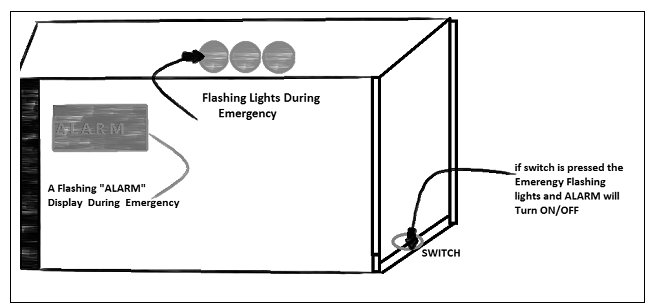

In this Project you will simulate a Security Alarm system using the Quick flash board. A switch is placed as shown in the figure below. The main goal of this project is:

Task 1: If anyone entering to the house steps (Presses) the switch the three Flashing Lights must turn ON/OFF and a flashing (ON/OFF) "ALARM" must be displayed on the Green Screen shown.

Task 2: For every presses of the switch make the flashing for only 5 times.

1318_Embedded Systems Design.png
