Calculate the power dissipated in the amplifier, Electrical Engineering

Assignment Help:

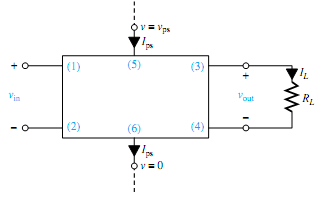

For the amplifier circuit shown in Figure with Ri ≅ ∞,Ro ≅ 0,A = 10,RL = 100 , and vin = 1 V, calculate the power dissipated in the amplifier if the voltage at the power-supply terminal Vps is given to be 20 V and Ips is assumed to be equal to IL.
