Types of stresses:

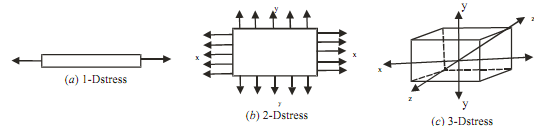

In general stress is divided in to three group as:

478_types of stresses.png

various types of stresses may be classified as:

1. Simple or direct stress (Tension, Compression, Shear)

2. Indirect stress (Bending, Torsion)

3. Combined Stress (Combination of 1 and 2)
