Try square-measuring tools , Mechanical Engineering

Assignment Help:

Try Square: It has two straight edge arms at the angle of 90 degree and it is used to check the perpendicularity. A try square is shown in Figure.

1374_Try Square.png

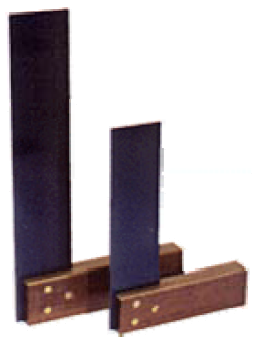

Figure: Try Square
