Solve the nonlinear equation and find r, Electrical Engineering

Assignment Help:

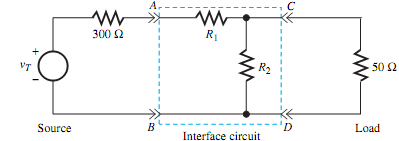

Q. An interface circuit consisting of R1 and R2 is designed between the source and the load, as illustrated in Figure such that the load sees a Thevenin resistance of 50  between terminals C and D, while simultaneously the source sees a load resistance of 300  between A and B. Using MATLAB, find R , and R .



825_Solve the nonlinear equation and find R.png
