Show step-motor control system, Electrical Engineering

Assignment Help:

Q. Show Step-motor control system?

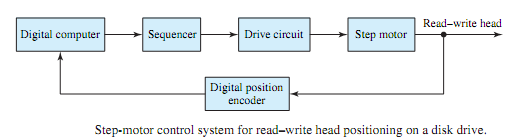

Figure illustrates a system in which the prime mover used in the disk-drive system is a step motor driven by pulse commands. In response to each pulse input, the step motor moves by some fixed displacement. This all-digital system does not need an A/D or D/A converter.

1816_Show Step-motor control system.png
