Obtain the node voltages and current through each element, Electrical Engineering

Assignment Help:

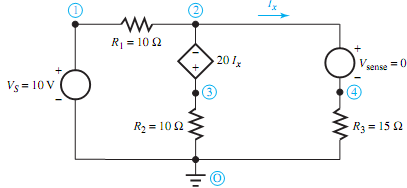

Q. For the circuit shown in Figure, develop and execute a PSpice program to obtain the node voltages and the current through each element.

2429_Obtain the node voltages and current through each element.png
