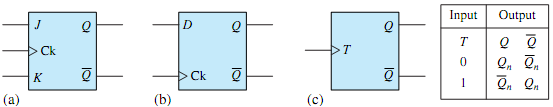

Q. A JK flip-flop is shown in Figure (a).

(a) Modify it to operate like the D flip-flop of Figure (b).

(b) Modify the JK flip-flop to operate like the T flip-flop of Figure (c).

1479_Modify the JK flip-flop to operate like the T flip-flop.png
