Illustrate torsionally equivalent shaft, Mechanical Engineering

Assignment Help:

(a) Illustrate Torsionally Equivalent shaft.

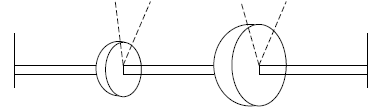

(b) Determine the natural frequencies and mode shapes for the system shown in figure

I1 = 10 Kg -m2

I2 = 40 Kg -m2

Kt1 = Kt2 = Kt3 =15 N-m/radian

1684_Illustrate Torsionally Equivalent shaft.png
