Harbour Layout:

A harbour has the following constituent parts:

(a)        An entrance channel, 100-300 m wide

(b)       A turning basin, dia 400-600 m

(c)        A breakwater, which protects the harbour from waves

(d)       Docks, where ships berth

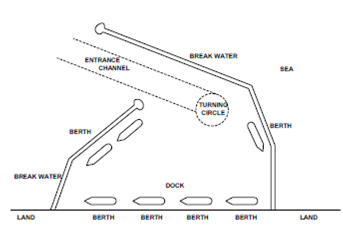

Figure gives a typical layout of a harbour.

916_Harbour Layout.png

Figure:  Harbour Layout
