Front top view of the motorcycle part of motorcycle, Mechanical Engineering

Assignment Help:

1370_front side of motorcycle.png

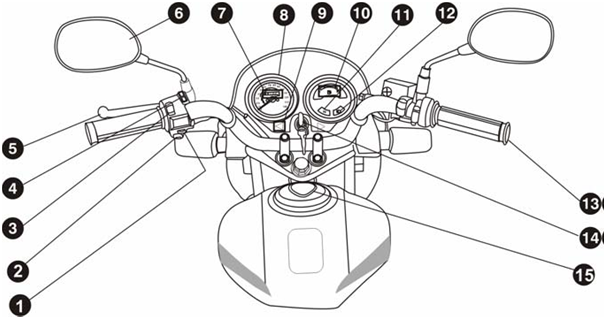

Figure : Front Top View of the Motorcycle

Part No.

Part Name

Functions

1

Turn signal switch

Used to give an indication while turning

2

Horn switch

Used to operate the horn

3

Headlight dimmer switch

Used to operate low beam of Headlight

4

Headlight switch

Used to operate headlight

5

Clutch lever

Used to operate clutch (to dis-engage engine power)

6

Rear view mirror

Used to view vehicles coming from the rear

7

Odometer

Shows accumulated mileage

8

Speedometer

Indicates driving speed

9

Indicator lights

Used to show that this vehicle is going to turn in indicated direction

10

Fuel indicator

Used to show the approximate fuel quantity in fuel tank

11

Neutral lights

Used to show the neutral position of gear

12

High beam indicator

Used to show the high beam operation of headlight beam

13

Throttle grip

Used to control throttle valve

14

Ignition switch cum steering lock

Used to start as well as to lock the bike

15

Fuel tank cap

Used to close fuel tank
