For the circuit obtain z- and y-parameters, Electrical Engineering

Assignment Help:

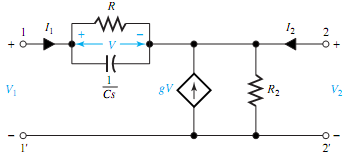

Q. For the circuit shown in Figure, obtain:

(a) z-and y-parameters;

(b) Transfer function I2/I1 when V2 = 0.

473_For the circuit obtain z- and y-parameters.png
