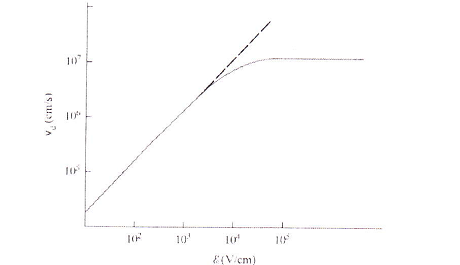

1. A 1 μm long and 100 μm2 cross-sectional area silicon bar is doped with 1016 /cm3 phosphorous. Use the graph below to:

1522_Find the current.png

a. Find the current at 300°K with 10 V applied.

b. How long does it take an average electron to drift s pm in pure silicon at an electric field of 100 V/cm? Given μn = 1350 cm2/V-s.
