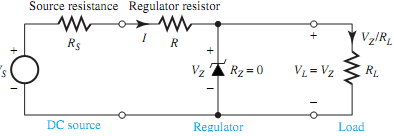

Q. (a) In the circuit shown in Figure the zener diode (with zero zener resistance) operates in its reverse breakdown region while the voltage across it is held constant at VZ and the load current is held constant at VZ/RL, as the source voltage varies within the limits VS,min S S,max. Find Imax and Imin for the corresponding Rmin and Rmax, respectively.
(b) Assuming RS = 0 and the source voltage to vary between 120 and 75 V, for a load resistance of 1000, determine themaximum value of the regulator resistor R if it is desired to maintain the load voltage at 60 V. Also find the required power rating of the zener.
Q. An operational amplifier stage is typically represented by the circuit of Figure. For the values given, determine V out and the power supplied by the 2.5-V source.
Determine the node voltage: Determine the node voltage V and then current flowing through each element by using KCL. Solution Apply KCL at the node whose voltage is V.
Q. Single-axis autopilot control system of an aircraft? Figure (a) shows the block diagram of a simplified single-axis (pitch, yaw, or roll) autopilot control systemwith digita
Q. A rectangular air-?lled RG-52/U is made of brass (ρ = 3.9 × 10-8 m) and has dimensions a = 22.86 mm and b = 10.16 mm. (a) Determine ¯ Z0(= R0) at the limits of the practica
The mathematical relationships of control systems are usually represented by block diagrams, which show the role of various components of the system and the interaction of variable
Performance Equations of Three Phase Induction Motor When balanced 3-? voltages are applied to the stator winding a rotating magnetic field of constant amplitude is produc
A sequential circuit has two inputs w1 and w2, and an output, z. Its function is to compare the input sequences on the two inputs. If w1=w2 during any four consecutive clock cycl
a. With neat circuit diagram and frequency response curve define the two stages RC coupled amplifier. What are its benefits and applications? b. Sketch ideal and the actual resp
Q. Show Maximum Common-Mode Input Voltage of amplifier? This is the maximum voltage that the two inputs can be raised above ground potential before the op amp becomes nonlinear
Q. Show the procedure of Hex to Decimal Conversion? To convert from the Hex to the Decimal, multiply the value in each position by its hex weight and add each value. Using the
