Q. Feature of micro-instruction execution?

Feature of micro-instruction execution is micro-instruction sequencing which involves address calculation of next micro-instruction.

Generally the next micro- instruction can be (refer Figure below):

  • Next micro-instruction in sequence
  • Calculated on basis of opcode
  • Branch address (conditional or unconditional).

740_Feature of micro-instruction execution.png

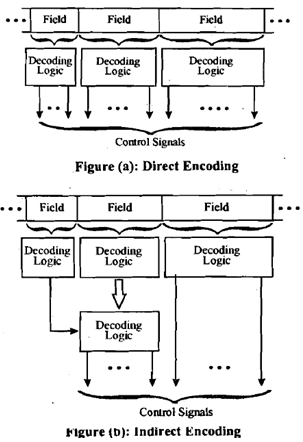

Figure: Micro-instruction Encoding
