Operand is that part of an instruction which specifies the address of source or result or the data itself on which the processor is to operate. Operand types typically give operand size implicitly. Generally operand data types can be divided in subsequent categories. Refer to figure below:

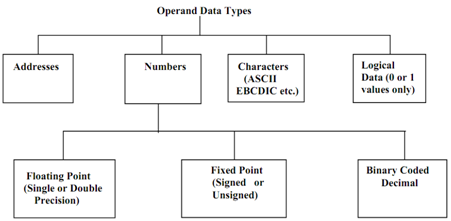

Figure: Operand Data Types
