Expression for the maximum shearing stress, Mechanical Engineering

Assignment Help:

Expression for the maximum shearing stress:

Obtain expression for the maximum shearing stress and maximum shearing planes.

Sol.: The condition for maximum shearing stress is given below,
1606_Expression for the maximum shearing stress.png
This expression gives value of maximum shearing plane. The other plane that carries maximum shearing stress is normal to this plane. Substituting value of θ in  τ expression with he following rearrangement.

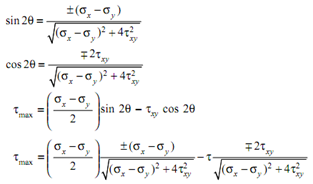

237_Expression for the maximum shearing stress1.png
1301_Expression for the maximum shearing stress2.png

44_Expression for the maximum shearing stress3.png
