Shear and Moment Diagrams

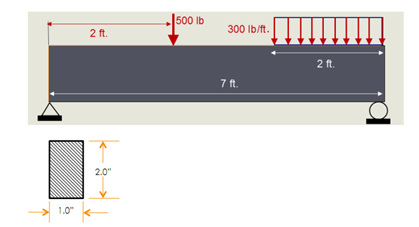

Determine the analytical solution for the maximum stress of the beam shown; compare with stress results from Solid Works. Draw shear and moment diagrams and print them from the beam diagram menu in the Solid Works Simulation study. The beam should be assigned an Alloy Steel material.

1038_Shear and Moment Diagrams.png
