Explain the single cast component auger, Mechanical Engineering

Assignment Help:

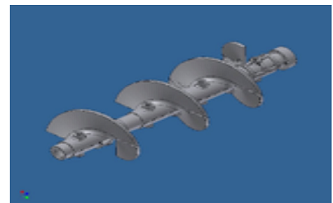

Explain the Single Cast Component Auger

Material for Single Cast Component Auger: Either Ni-Cr or Cast iron

Length of components: 1250 mm.

Outer Diameter of Auger components: 355 mm

Thickness of Auger: 20 mm

Outer diameter of main auger shaft: 95 mm.
